Ionization Constants Of Phospholipids

PHOSPHATIDYLSERINE

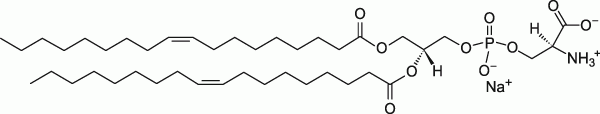

phosphatidylserine diagram

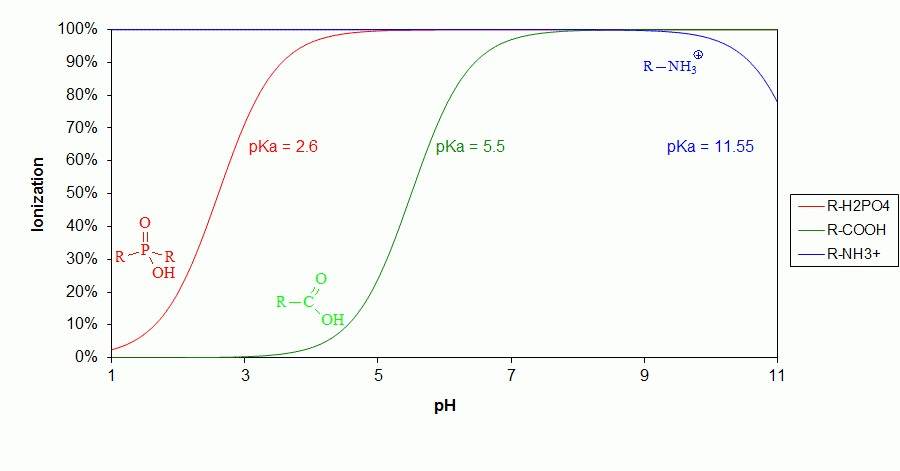

Phosphatidylserine

Percent Ionization as a Function of pH, Ionic Strength - 0.1 (NaCI)

Data from CRC Handbook of Lipid Bilayers, Derek Marsh (1990) CRC Press, Boca Raton

phosphatidylserine ionization graph

Phosphatidylserine

Relative charge as a Function of pH, Ionic Strength = 0.1 (NaCI)

Data from CRC Handbook of Lipid Bilayers, Derek Marsh (1990) CRC Press, Boca Raton

phosphatidyl serine relative charge graph

PHOSPHATIDYLETHANOLAMINE

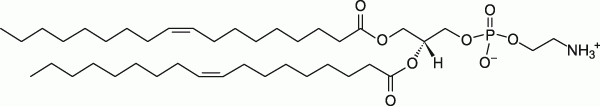

phosphatidylethanolamine diagram

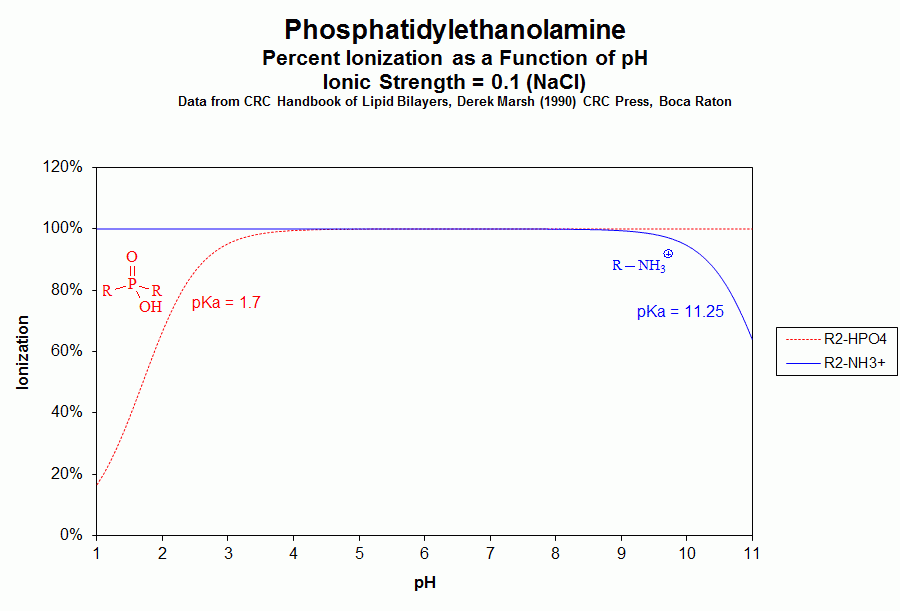

phosphatidylethanolamine ionization graph

PHOSPHATYDYLINOSITOL

phosphatydylinositol diagram

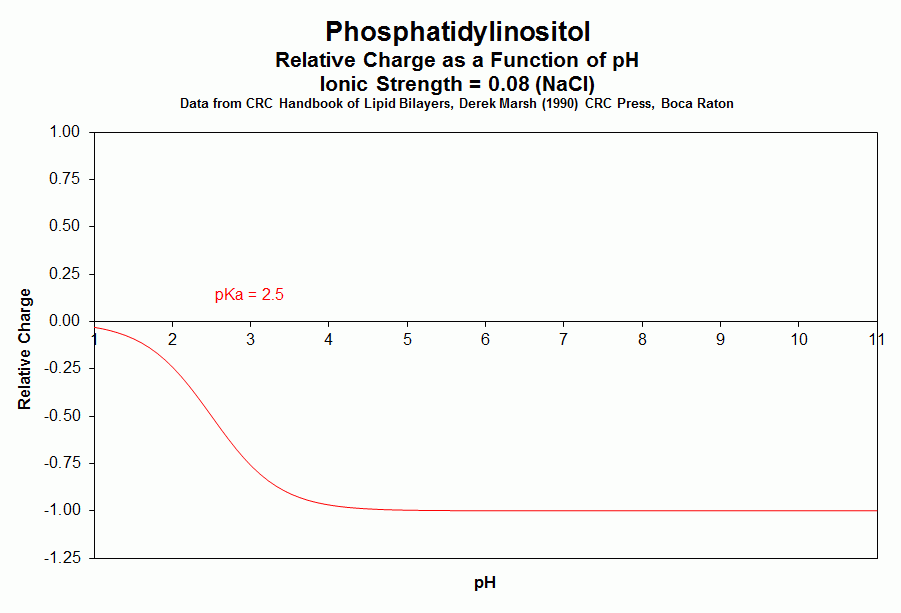

phosphatydylinositol relative charge graph

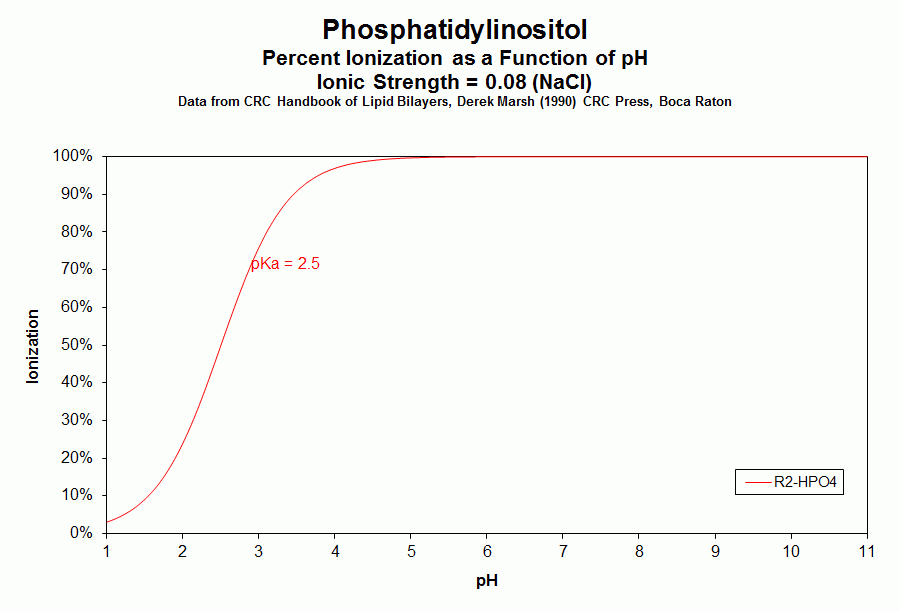

phosphatydylinositol ionization graph

PHOSPHATIDIC ACID

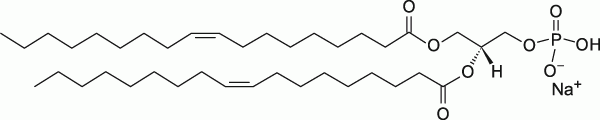

phosphatidic acid diagram

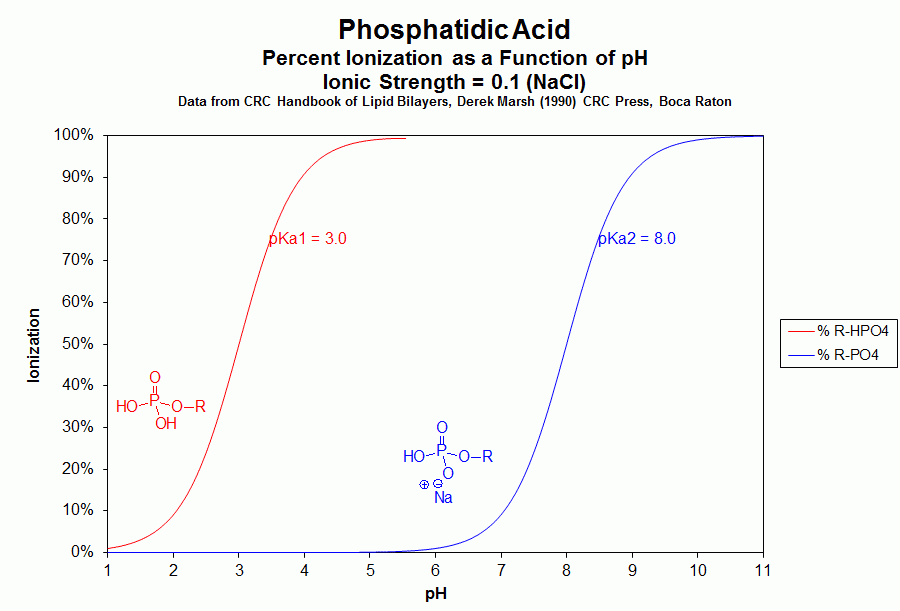

phosphatidic acid ionization graph

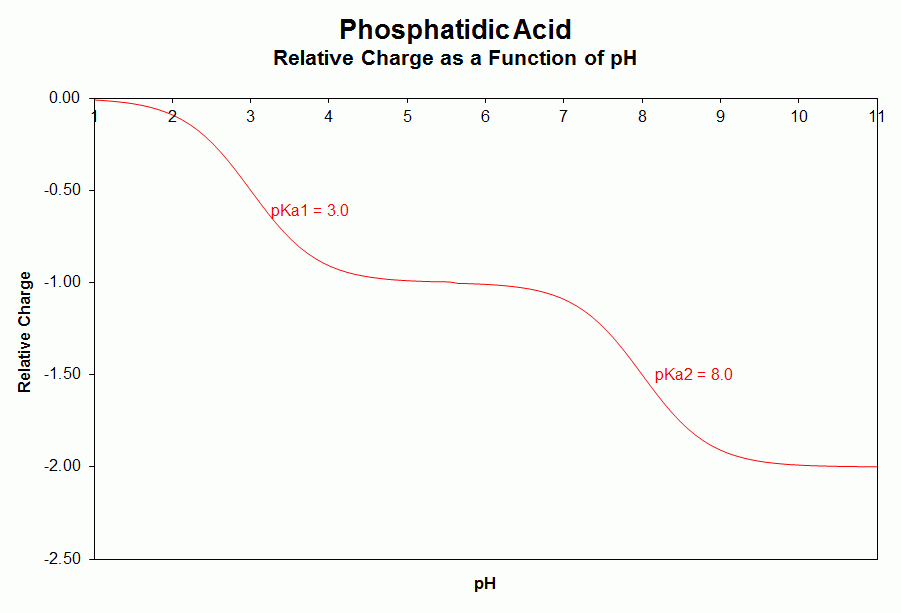

phosphatidic acid relative charge graph

PHOSPHATIDYLCHOLINE

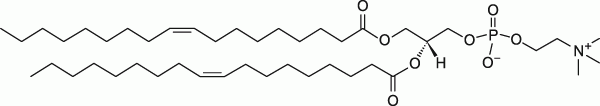

phosphatidylcholine diagram

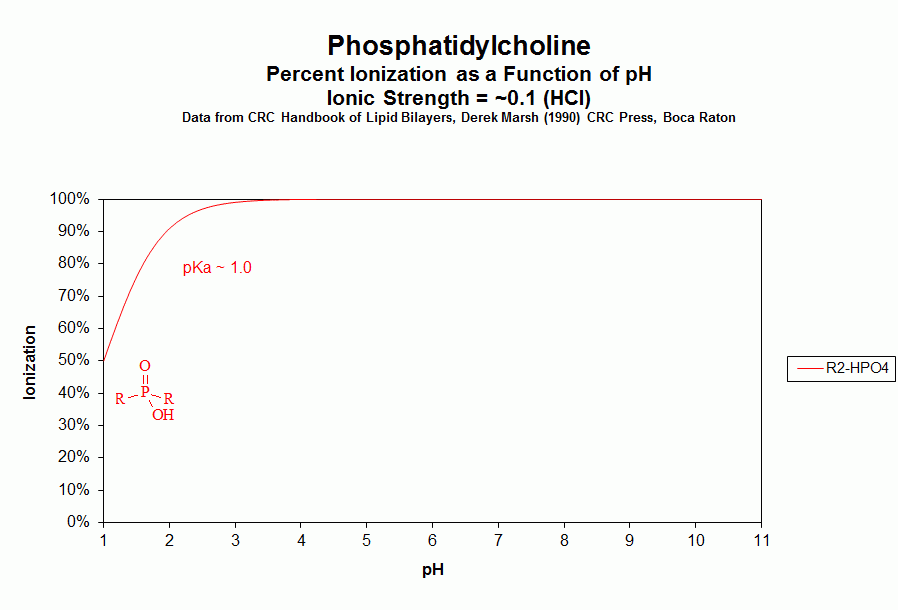

phosphatidylcholine ionization graph

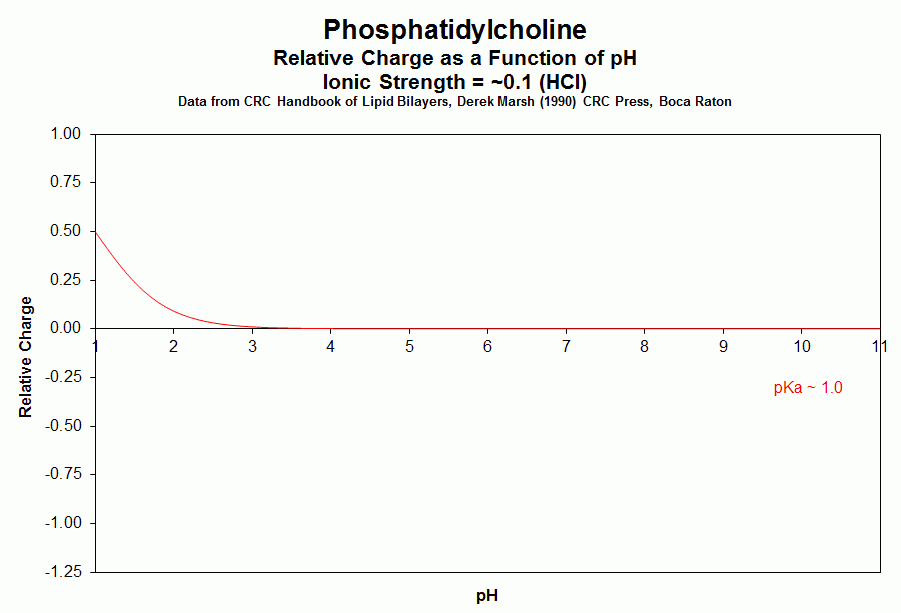

phosphatidylcholine relative charge graph

PHOSPHATIDYLGLYCEROLS

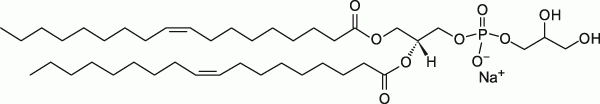

phosphatidylglycerols diagram

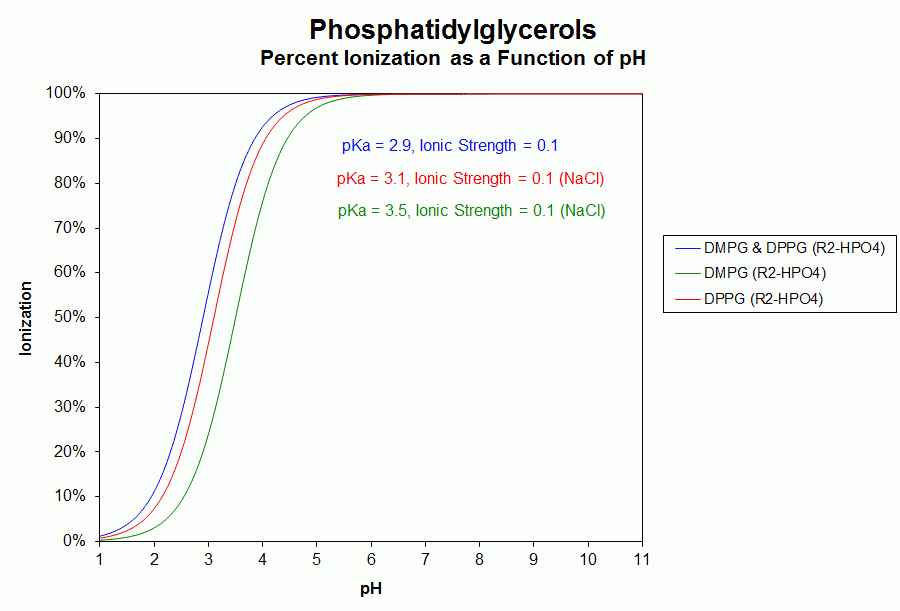

phosphatidylglycerols ionization graph

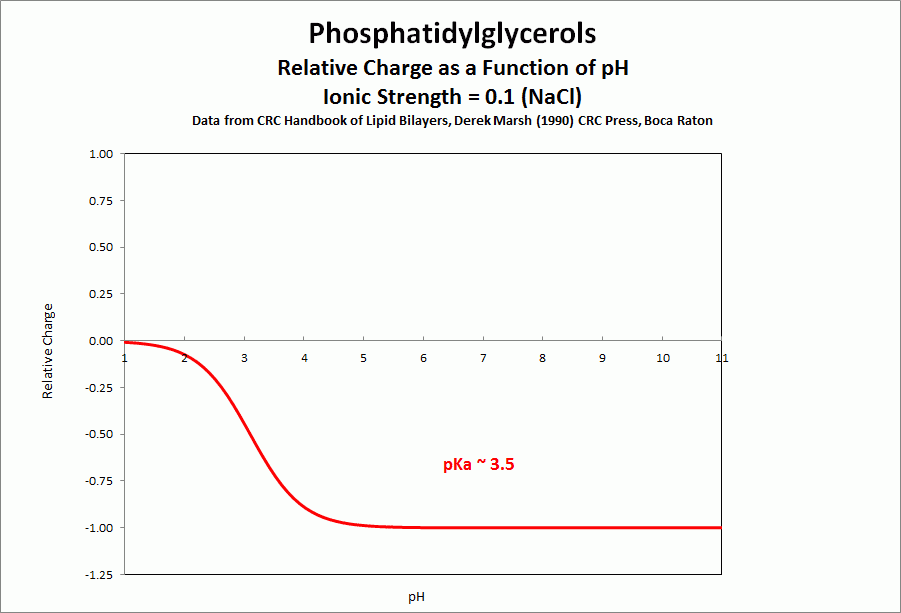

phosphatidylglycerols relative charge graph

REFERENCES
Tsui, F.C., Ojcius, D.M., Hubbell, W.L. (1986) The intrinsic pKa values for phosphatidylserine and phosphatidylethanolamine in phosphatidylcholine host bilayers. Biophys J. 49:459-68. [PubMed]
